Product Details
- Size: 1440*540*710
- Place of Origin: Taian,Shandong
- Brand Name: Taian FuTong Mining Electric Co.,Ltd
- Model Number: MFBL-3.0
- Weight: 150.000 kg

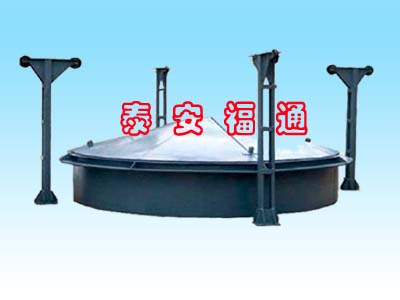

Vertical shaft explosion door Structure
It consists of explosion-proof cover, the wind device, a heavy hammer device and other parts.
1. explosion-proof cover adopts cone structure which connected by four parts , each part compound forming by steel plate, angle steel
2. reverse wind device is pressure plate type
3. heavy hammer device consists of heavy hammer frame, pulley,counterweight
4. the sealing method using welding steel outer panels fixed δ15 rubber
Vertical shaft explosion door Parameters
It consists of explosion-proof cover, the wind device, a heavy hammer device and other parts.
1. explosion-proof cover adopts cone structure which connected by four parts , each part compound forming by steel plate, angle steel
2. reverse wind device is pressure plate type
3. heavy hammer device consists of heavy hammer frame, pulley,counterweight
4. the sealing method using welding steel outer panels fixed δ15 rubber
Vertical shaft explosion door Parameters
Most are based on shaft diameter selection, and its ability to adapt to different suction fan. According to the negative pressure fan can be divided into no more than 350 mm water column and not greater than 450 mm water column two categories; According to the mouth of the well diameter points have three specifications: maximum fan pressure of 4.413 KPa.
